I.Introduction

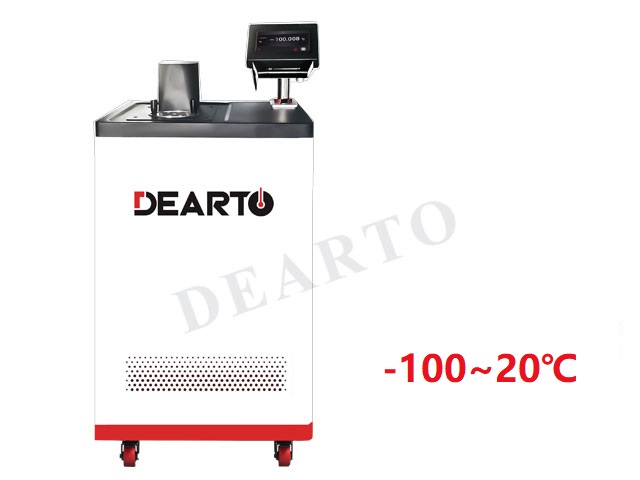

DTS-CT100CH-BG Ultra Low Temperature Smart Calibration Bath is designed specifically for the testing of ultra-low temperature sensors, sets a new standard in smart temperature calibration. These advanced models deliver exceptional accuracy and precision across a wide temperature range. They perform excellent during high-precision testing of temperature components, such as thermocouples and resistance temperature detectors.

(Special index products can be customized according to requirements)

II.Technical Parameters

III.Features

1.Adjustable heating and cooling rates：

The rate of temperature rise and fall can be adjusted, and the rate of temperature rise and fall can be set freely. According to the set rate of temperature rise and fall, the temperature rises and falls at a uniform speed to meet the verification / calibration of various temperature switches.

2.Active ventilation system（optional）:

Active ventilation maintains smoke-free circumstance and is adaptable to various scenarios requiring smoke management.

3.Smart liquid refill:

Support for intelligent liquid replenishment to the ideal level; compatible with manual and automatic liquid replenishment modes; real-time monitoring of the liquid level, low liquid level alarms and automatic shutdown.

4.Multi-point temperature correction:

The device supports temperature multi-point calibration, correction function, to ensure that the temperature control of the thermostat tank and the standard is consistent, to achieve the minimum deviation.

5.Adjustable liquid level:

Liquid level can be set freely to accommodate various short-type temperature sensors and fulfill different immersion depth requirements.

6.Three-axis mechanical arm:

The smart touchscreen is mounted on a three-axis mechanical arm, enabling flexible angle adjustments for convenient viewing of equipment status from any position.

7.Mobile App control:

Through the mobile App developed for the calibration bath, users can operate the temperature bath and monitor its real-time status.

8.Real-time stability indication:

Stability indication displays real-time stability data of the bath and reliefs operators from repeated manually checking.

9.Comprehensive communication support:

Smart models support USB, Wi-Fi, WLAN, and serial communication, enabling data upload and export.

10.Smart large touchscreen control:

A large capacitive touchscreen is embedded with intuitive operation system The smart interface supports multi-function window displays, enabling easy temperature setting and one-click startup.

11.Language and units:

The system supports English and Chinese interfaces. Temperature units can be switched between Fahrenheit (°F), Celsius (°C), and Kelvin (K).

12.Multi-layer insulation：

The multi-layer insulating structure effectively blocks thermal bridges, ensuring stable temperature fields and minimal fluctuations while preventing burns or frostbite. Built-in overflow circuits protect surfaces from liquid contamination.

13.Dual independent protection circuits:

Dual independent protection circuits automatically cut power in case of overheating, providing enhanced safety.

14.Smart energy-saving mixer：

The mixer is controlled by the smart system based on the startup conditions and the liquid temperature. This design reduces noise, minimizes power consumption, and extends equipment service life.
